FE Surface Loading

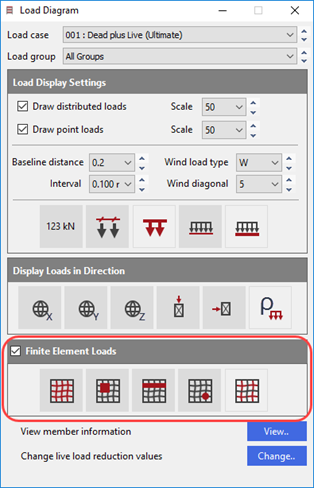

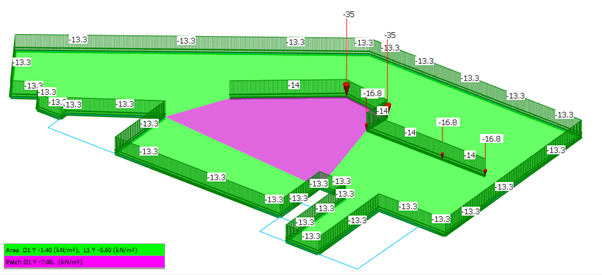

FE Loads are applied to FE surfaces as area loads, patch loads, line loads and point loads. These can be viewed using the Frame Loads Diagram settings. Tick the Finite Element Loads box and select which types of loads to display.

Also see manual on MasterFrame Finite Element Analysis.
