Printing Tabular Results

To print the tabular results, enter the viewing of Tabular Results area as described in the previous section.  Then select the Print Tabular Output option from the menu.

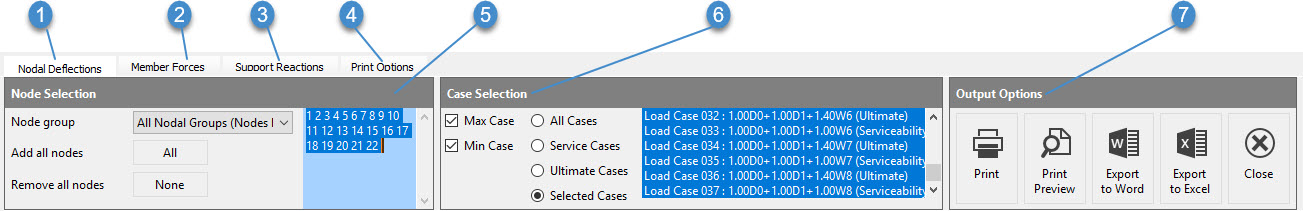

Printing of output is best handled in the following sequence

1.Select the Nodal Deflections Tab (1)

2.In the Nodal Selection Panel (5) select the nodes you want to print

a.Use the All or None buttons or if you set up Nodal groups then use the drop list.

b.To select a selected set of nodes, press the None button and then graphically pick your nodes

3.In the Case Selection Panel select the cases to Print the nodal deflections for. To use Selected Cases option you need to hold down the Ctrl key to select multiple cases.

4.Now select the Member Forces Tab (2)

5.In the Member Selection Panel (5) select the members you want printed

6.Again, In the Case Selection Panel select the cases to Print the Member Forces for.

7.Now select the Support Reactions Tab (3)

8.In the Support Selection Panel (5) select the nodes you want printed

9.Again, In the Case Selection Panel select the cases to Print the Support reactions for.

Now choose your output device.
