Internal Member Forces

Internal member forces allow you to view the Axial, Shear and Bending Forces on a member at different distances along the member.

Note: Torsion is ignored.

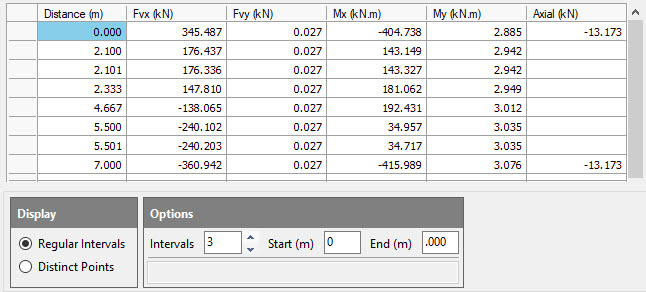

The above member is set for forces at 3 intervals (4 values).  However, MasterFrame also gives values each side of each external load. Thus, we have values at 2.1 m and 2.101 m.

Filtering at the bottom is similar to the view & print Tabular output.
