The Design Summary Area

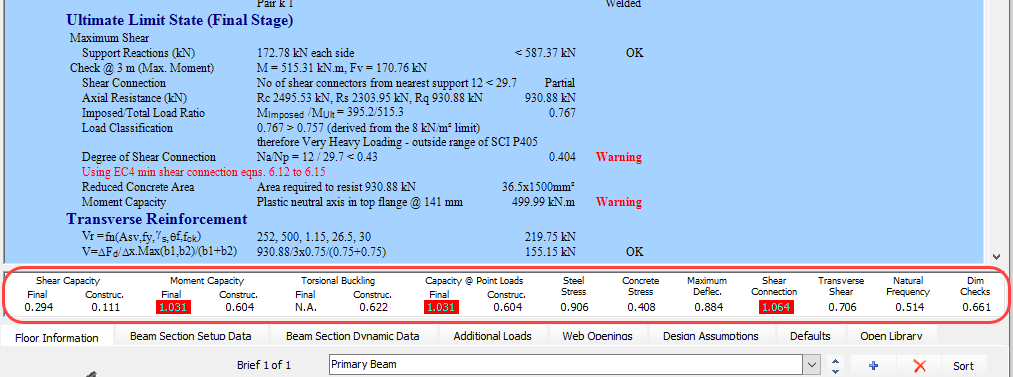

The design summary area permits immediate evaluation of the fundamental design checks. The unity ratios are dynamically updated with any alteration of information in the editing area.

By clicking on any of the items in the design summary area the corresponding detailed design output is displayed.

Any unity ratios exceeding 1.0 represent a design failure and are highlighted in red. The background colour of the design output and graphics area also changes to blue, making any failure immediately apparent.
