Global Editing Mode

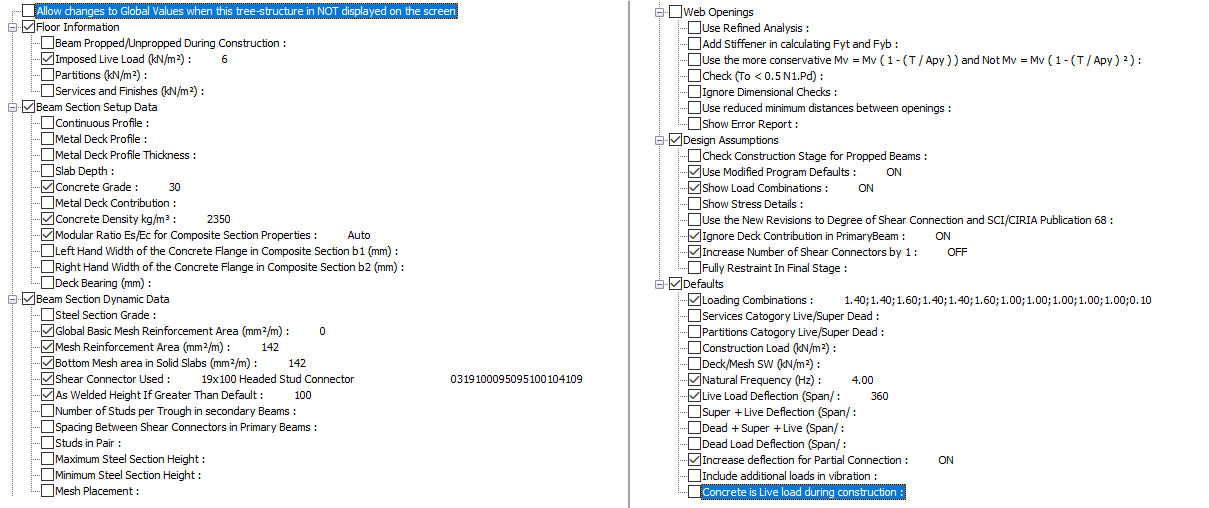

The Global Editing Mode icon can be found on the top toolbar . It will give you access to the tree view of parameters shown below.

The Global Editing mode allows you to set one or more parameters as global values, applicable to all design briefs in your current composite beam design file. These values will be set as the same for each beam design in the file. For example, you may wish all the beams to have a concrete grade of 30 N/mm2 or a minimum mesh reinforcement of 142mm2. This saves you having to alter the value for each individual design brief in the file.

To set a particular parameter to a global value, first set the parameter to the value you require on the tabs at the bottom of the screen in one of the briefs, eg, concrete grade on the reinforcement tab to 30. Then open up the global editing screen by clicking on the icon on the top toolbar. Place a tick against the Concrete Grade. This has now set the concrete grade as a global value. To go back to the design briefs, click again on the global icon on the top toolbar. Now all design briefs will have been set to 30 N/mm2. The Concrete Grade box will now have a blue background indicating that it has been set as a global value.

To reset a global parameter, click on the icon again to bring up the tree view, remove the tick from the appropriate box, change the parameter at the bottom of the screen and tick the box again to reset the new value of the parameter as global.

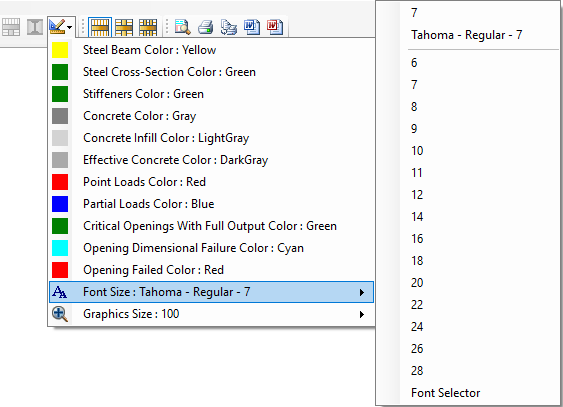

Under the Customise Fonts and Colours option, you can change the colour of individual parts of the graphics, although this is not recommended unless you find it really necessary.

You can also change the font size and type on the graphics display and similarly the size of the overall graphics should you need a bigger picture.
