Display and Print

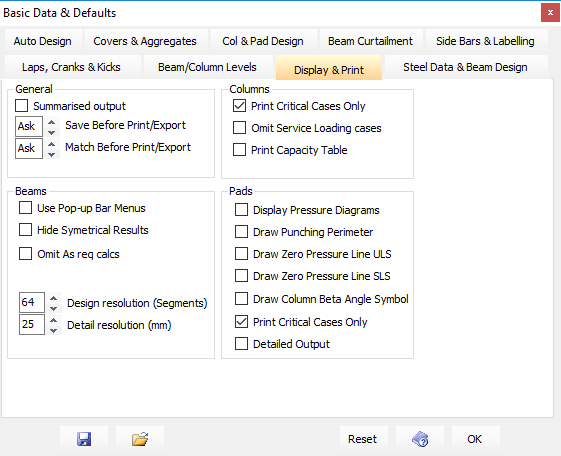

Up to 2020 version

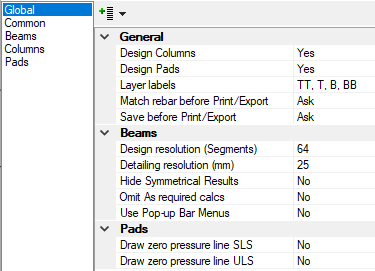

From 2021 version





General

Summarised output:



Save Before Print/Export:



Match Before Print/Export:

Reduces calculation output and does not print intermediate calculations.

Allows you to suppress the question about saving data before you print or export details.



Allows you to suppress the question about matching beam reinforcement over column heads before you print or export details.

Beams

Use Pop-up Bar Menus:

Activate the bar pop-up menus for the bar label editing

Hide Symmetrical Results:

Hides left or right hand support results if they have the same data. The larger forces will be checked for.

Omit the As req calcs:

Omits the As required from the BS8110 calcs. This value is a check value and is not needed. Useful if you want to re-size the reinforcement.

Design Resolution:

Set the Resolution (number of intervals) in the BM/Ft/SF diagrams to 16,24,32,64,128 intervals.



Note: This resolution determines the accuracy of the curtailment. The higher the resolution the more accurate the curtailment but the longer it takes to compute. In SuperMembers this is the number of intervals per segment.

Detailing Resolution:

Set the curtailment distance rounding value to 1, 2, 5, 10, 25, 50, 100 or 250 mm. The higher the rounding value the simpler the reinforcement and the fewer different bar marks used.

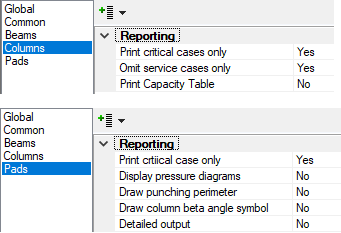

Columns

Print Critical Case Only:

Display (and print) all or just the critical loading case

Omit Service Loading Cases:

Display (and print) all or just the ultimate loading cases

Display Capacity Tables:

Display (and print) an interaction table for the defined reinforcement





Pads

Display Pressure Diagram:

Display or hide the base pressure diagram

Display Punching Perimeter:

Display or hide the base punching perimeter at 1.5 D from column face

Draw Zero Pressure Line ULS

When we have base uplift draw the line of zero pressure for the Ultimate Limit States loading Cases

Draw Zero Pressure Line SLS

When we have base uplift draw the line of zero pressure for the Serviceability Limit States loading Cases

Draw Column Beta Angle Symbol

Draw the column's beta angle symbol on the corresponding pad graphic so as to check the orientation of the column and pad.

Print Critical Case Only:

Print all or just the critical loading case

Detailed Output

Display (and print) or hide additional design information
