Beams in torsion
Beams can develop torsion as a result of the analysis model or due to out of balance down-stand nib loads.
Torsional loads from the analysis model can either be designed for or, in certain conditions, ignored if omitted from the analysis. Thus if you have a structure that requires torsional resistance for stability (cantilever perpendicular from another beam) then you must design for torsion. However in a basic ground beam arrangement you can ignore the torsion if you omit it from the analysis.
|
|

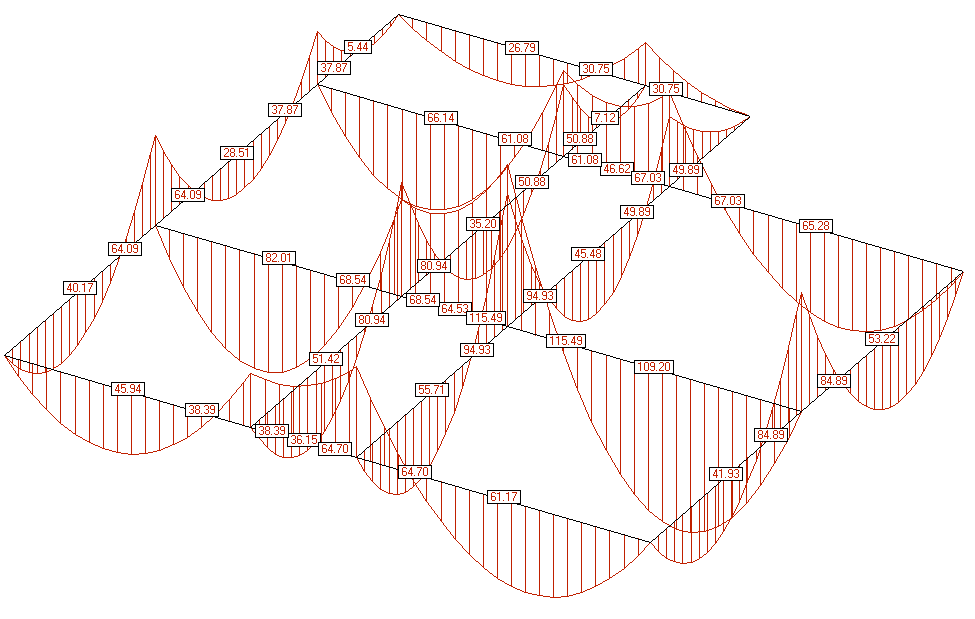

Grillage with torsion. Note moments at ends of beam runs that develop torsion in the perpendicular member, particularly at corners. |

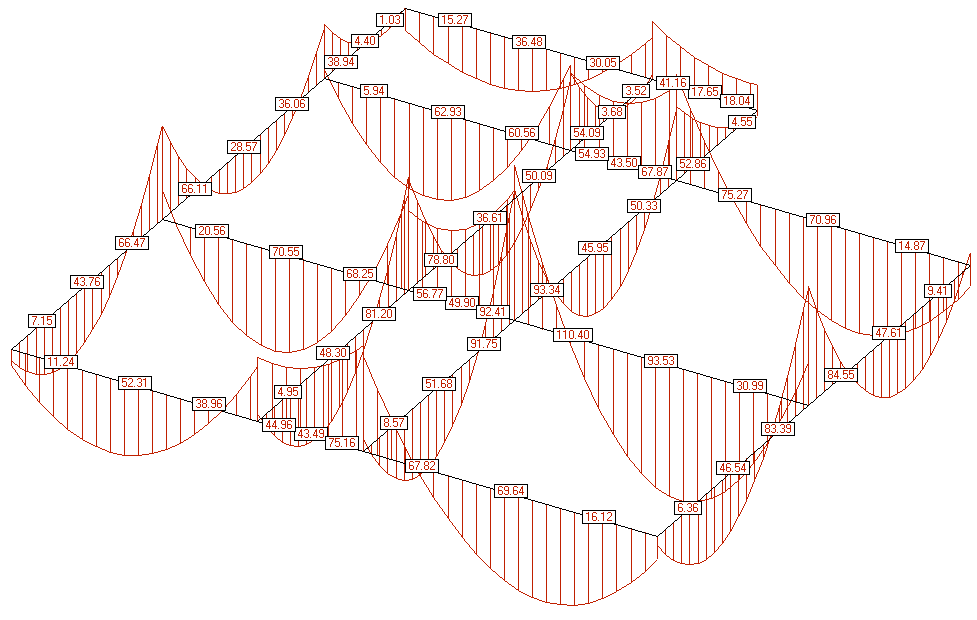

Grillage with torsion released in MasterFrame. |
To release all the members torsionally in MasterFrame without all the effort of pinning members individually, in the MasterFrame editor go to the 'Analysis > Global Analysis Options > Ignore Torsional Stiffness' menu and tick the box.
Where torsion does exist it is checked in accordance with BS8110 Pt 2 Clause 2.4 or EC2-1-1 Clauses 6.3 and 9.2.3. Only the main rectangular cross-section is considered.
Any area of main steel and Asv/Sv required to resist torsion is then deducted when designing your normal bending and shear.
It should be noted that clause 2.4.5 states that (v + vt)< vtu. If this check fails then adding more main or shear reinforcement will have no effect. v, vt & vtu are all based on the un-reinforced section. Increase your Fcu or section size. Make it squarer.
