Viewing Design Results and Dimensional Checks

Column and Pad Foundation design results and dimensional checks are displayed directly on the screen in a scrolling window during the design. Beam results, however, are not. To view the beam design output;

Select the Toggle between beam graphics and results button  in the bottom left corner of the screen, or

Select View Current Beam Results from the View drop menu, or

Double click on the Failure Bar, and the results screen is displayed.

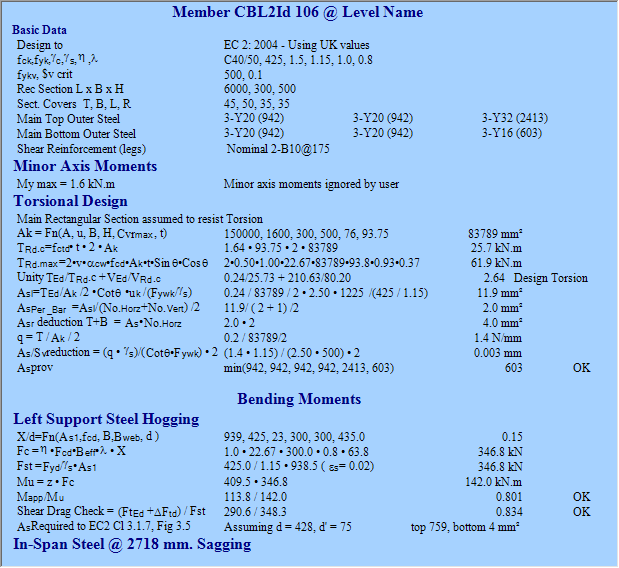

Design results are generally displayed over four columns, in the format; Description of calculation, item or numerical value. Design data or calculation. Calculation result or permissible values. Design check verdict, OK or Warning.   Note:  The blue background indicates that one of the design checks has failed.
