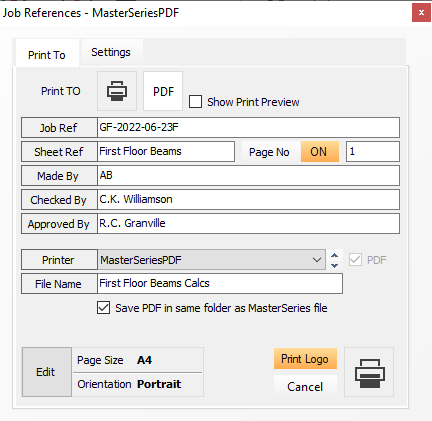

Project Title and Job Reference:

Edit the output page title block project references.

Print Frame Geometry:

Print frame geometry as currently displayed on screen.

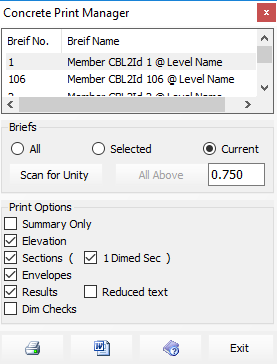

Print Current Design Output:

Load the print manager to print/export (to PowerPad/Word) the current members’ design checks.

Print All Design Output:

Load the print manager to print/export (to PowerPad/Word) all visible or selected design checks.

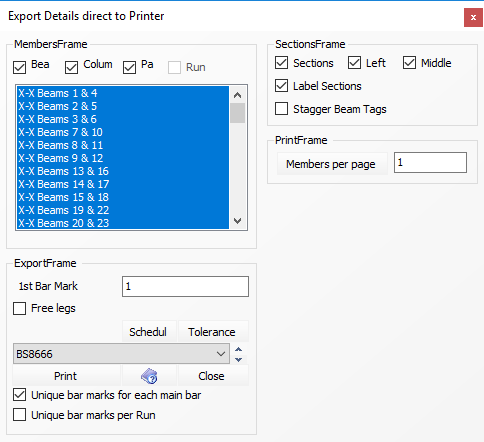

Print RC Details (export):

Print Selected RC Detail drawings with reuse of bar marks.

Also loads scheduler.

Print Bar Schedule(export):

Print Bar Scheduling of selected members.

Also loads scheduler.

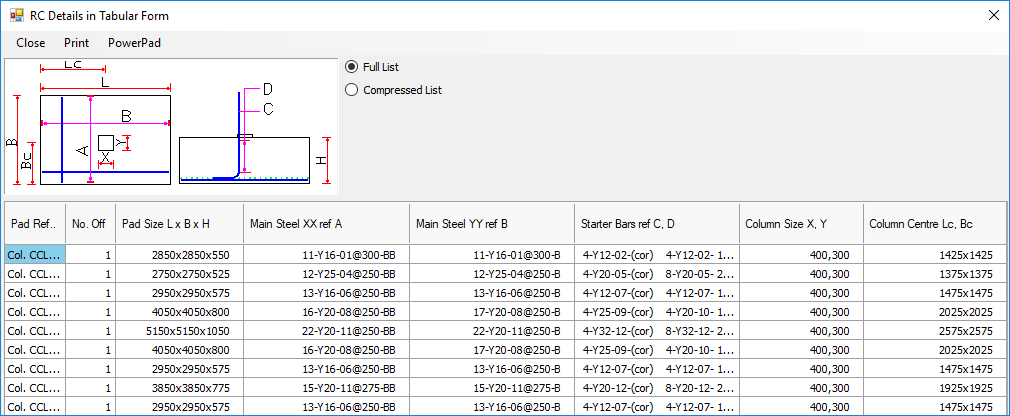

Print Table of Pad RC Details (export):

Print a table of Pad foundation details as shown below.
