Print and Export Design Output dialogue

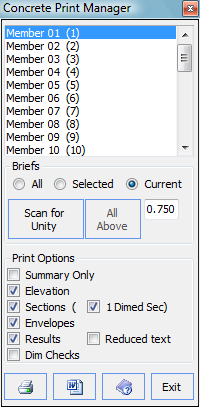

Select Print: Print Design Current Output. Design checks may be selectively printed/exported from MasterKey Concrete by highlighting them from the list of checks. The ALL switch automatically selects all design checks that are in currently visible beam and column runs together with visible pad foundation. The Current switch selects only the one design check you are currently viewing. The Print options allow you to select the items you wish to print out for each design check.
	Beams	Columns	Pad Foundations
Elevation	Beam Elevation	N/A	N/A
Sections	3 Key Sections	Dimensioned Section	Dimensioned Section
1 Dim Sec	1 Dimensioned Section	N/A	N/A
Envelopes	BM and SF Envelopes	N/A	N/A
Results	Calculation Results	Calculation Results	Calculation Results
Summary Only	Yes	Yes	Yes
Dim Checks	Yes	Yes	Yes

Important Note: This function should not be used for exporting elevations for scheduling or detailing. Each beam elevation printed from here will start at bar mark 01 as the bar marks are only indicative. Thus the output would not produce ascending bar marks and would not match any Schedule.

If you want beam elevations with ascending bar marks that match the schedule then select to Print: Print RC Details or Export: Export RC Details (Printer).
