Exported Detailing Options and Features





Export Option

MasterRC

DXF

A4/A3 Printer

Environment required:

MasterRC* plus full AutoCAD

Any 2-D system e.g. AutoCAD LT or AutoSketch

A4-A3 printer

Produce Schedule:

Yes using in-built Scheduler

Yes using MRC Scheduler*

Yes using MRC Scheduler*

Edit exported bars:

Yes

Yes but not reflected in schedule.

No

Exported Schedule reflect drawing changes:

Yes

No

No

Edit Schedule:

Via the drawing info. 100% accurate

No

No

*MasterRC (MRC) and the MasterRC Scheduler are separate add on MasterSeries programs.

Bar marks will increment and repeat as required in DXF, Printer and MasterRC exports as shown below.

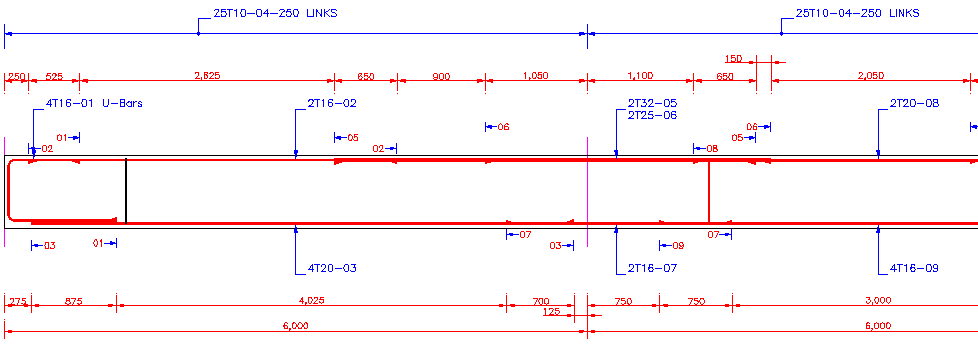

Typical Export of a Beam run to a DXF file shown above.

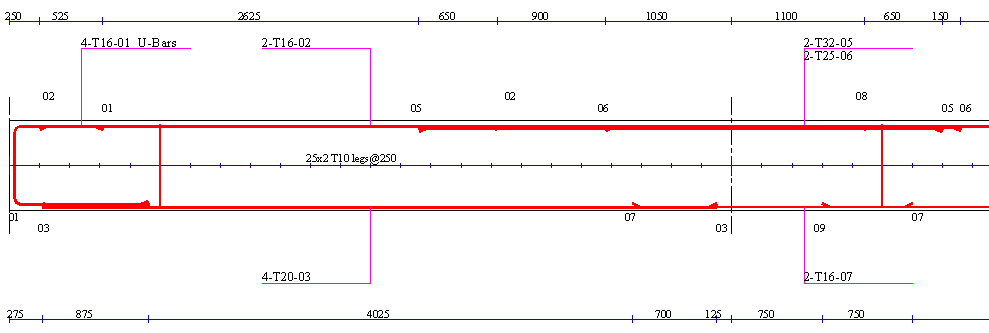

Typical Export of a Beam run to a MasterRC file shown above



MasterRC Detailing drawing output
