Beam Data

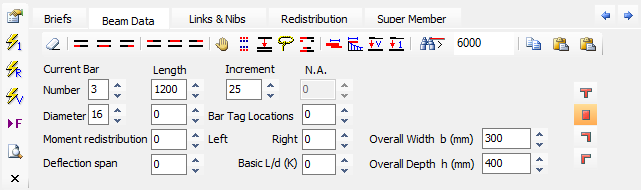

In the beam data tab you can change the number, diameter and length of the currently selected bar. You can also change the bar tag locations for improved clarity.

The percentage redistribution can also be set for each end of the member. This allows you to optimise their design by only redistributing as required. It should be noted that this redistribution is carried out in isolation and the user should check the adjacent spans and apply the same percentage there. The redistribution tab gives a more global method.

The span length to be used in the deflection calculations and the basic L/d to be used can also be modified.

The sections buttons and input boxes allow you to adjust the member cross-section. This is interactive with all results being updated. You should re-analyse the frame after all sections are modified and check for any transferred moments due to changes in member stiffnesses using the

button.

	Erase the currently highlighted (in red) bar.
	Insert a bottom left bar.
	Insert a bottom middle bar.
	Insert a bottom right bar.
	Insert a top left bar.
	Insert a top middle bar.
	Insert a top right bar.
	Mirror (hand) all reinforcement in the beam.
	Swap the currently highlighted bar (in red) between the inner and outer layers.
	Split the currently highlighted bar (in red) into two sets of bars. 4T32 => 2T32 & 2T32. Allows for different curtailment points or moving one set onto another layer.
	The lasso. When active all bars under the drag point move simultaneously instead of the default of just the highlighted bar (in red)
	Creates symmetrical reinforcement (main and shear) in the current beam based on the beam end with selected (red) support steel. Function is disabled when central steel is selected.
	Automatically re-lap the nominal reinforcement to the main reinforcement for the current member.
	Automatically re-curtail the currently defined main reinforcement and then relap for the current member.
	Match the support reinforcement to either side of each support for all Visible designed beams.
	Match the support reinforcement to either side of each support for the current beam only.
	Scans all the beams and stops if it finds a bar longer than the value set in the drop list.
	Copy the current beam details to the clipboard.
	Paste the beam details from clipboard to current member (straight copy).
	Paste the beam details from clipboard to current member (mirror copy).
