Report

Once a slab deflection and crack width analysis is complete, the design calculations can be output as a report. This option is selected by clicking on the  icon. This will open the Slab Design Print Manager window.

To print Check Lines and/or Crack Widths, the required check boxes should be ticked.

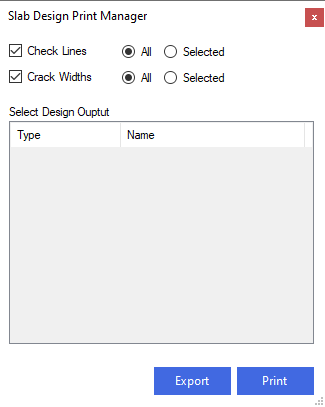

Selecting the All option will print all check lines and crack width checks. With All selected the Select Design Output panel will appear blank. If the Selected option is chosen, then a list of all of the slab deflection and/or crack width checks will then be listed in the Slab Design Print Manager window. An example is shown below.

The desired checks can be highlighted by selecting them in the list. The highlighted items will be shown with a blue highlighted background. To export the design deflection and crack width calculations to Word, select the  icon, while to print or creat a pdf of the outputs, select the  icon, which will open the Print Manager option.

To print the graphics outputs, to shown check line locations or to view contour outputs, use the mouse right click in the graphics window and select the Print Graphics option. This will open the Print Manager window which will allow the graphics to be sent to a printer or to be added to a pdf document.
