Accessing Pile Cap Design from MasterFrame

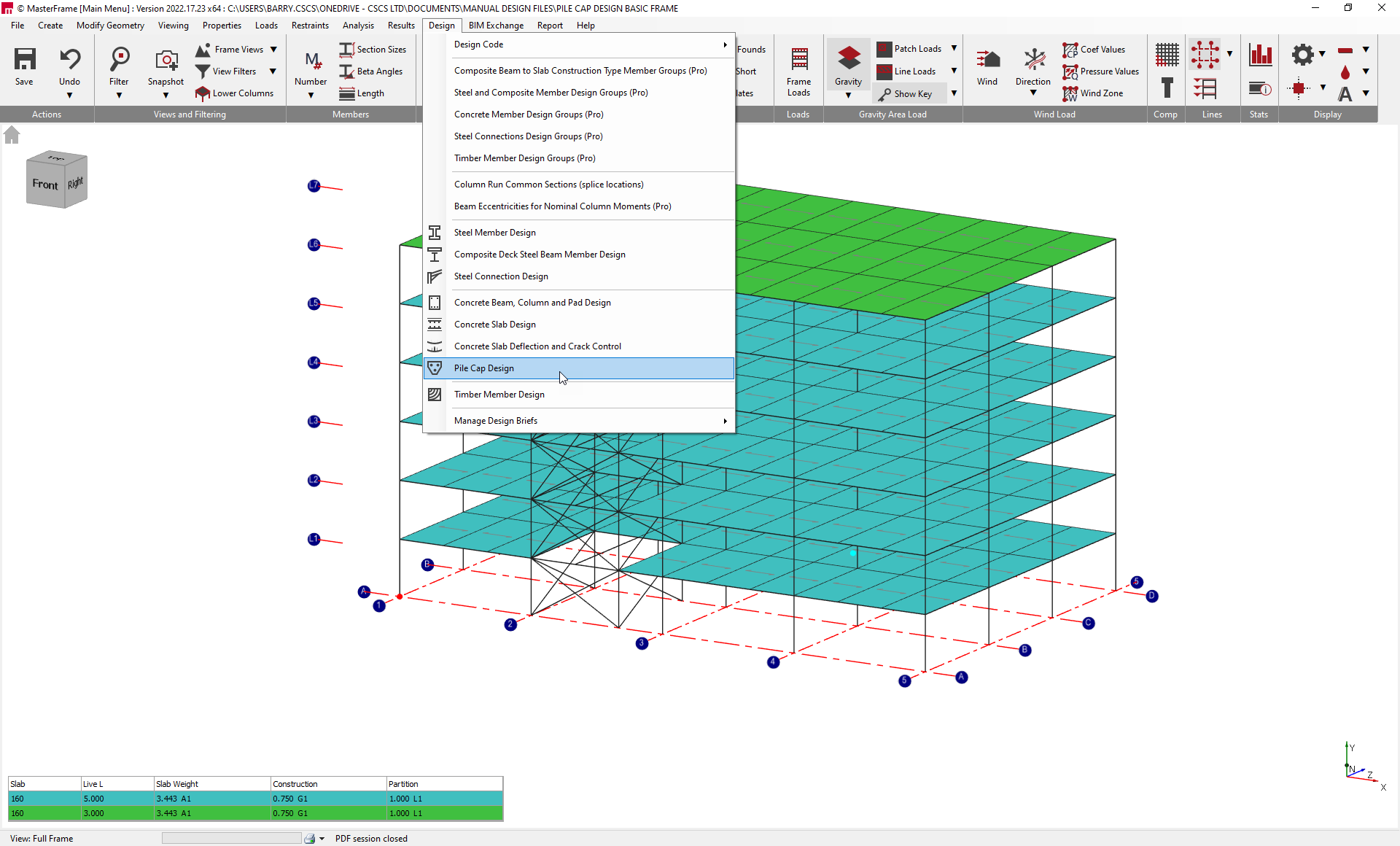

The pile cap module is accessed through MasterFrame using the Design menu, as shown below.

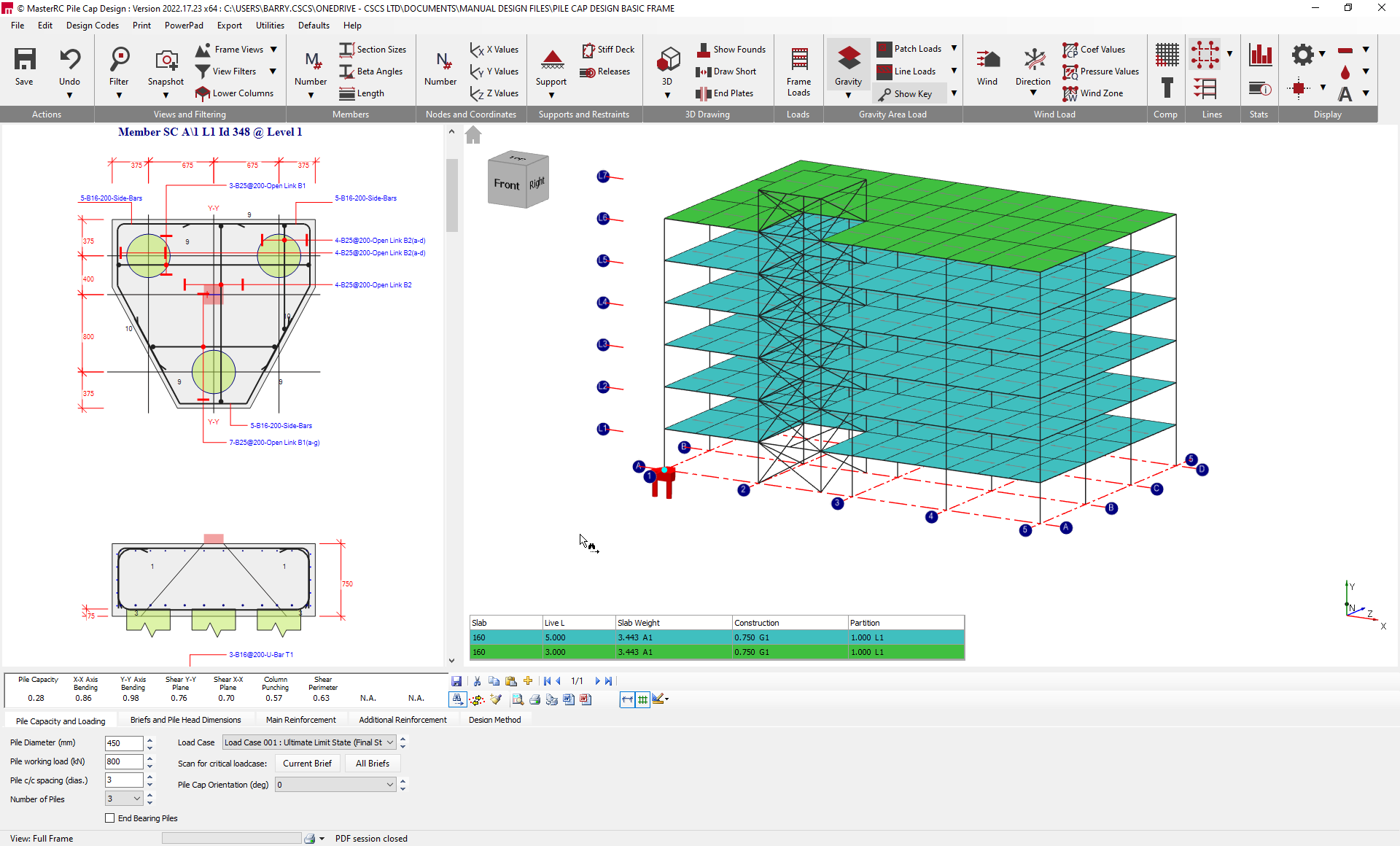

On entering the integrated version of the pile cap design module, the basic screen layout is as shown below. The graphics and design calculations area is now in the left-hand pane, while the frame view and graphical indicator of the current pile cap are shown in the right hand pane.

The top menu layout remains the same as in MasterFrame, to retain the options for viewing the model. The layout of the bottom input area is the same as in the standalone module, though with some differences in the inputs and options to reflect the fact the design is based on the frame and load cases from MasterFrame.
