Icon Menu Bar

The icon menu area provides options for adding, deleting and navigating between design briefs, replicating functionality which can be found in other menu areas but giving easier access. The icon menu also provides some additional functionality for the display of the pile cap, with option to turn on or off the centre lines and dimensions of the pile cap.

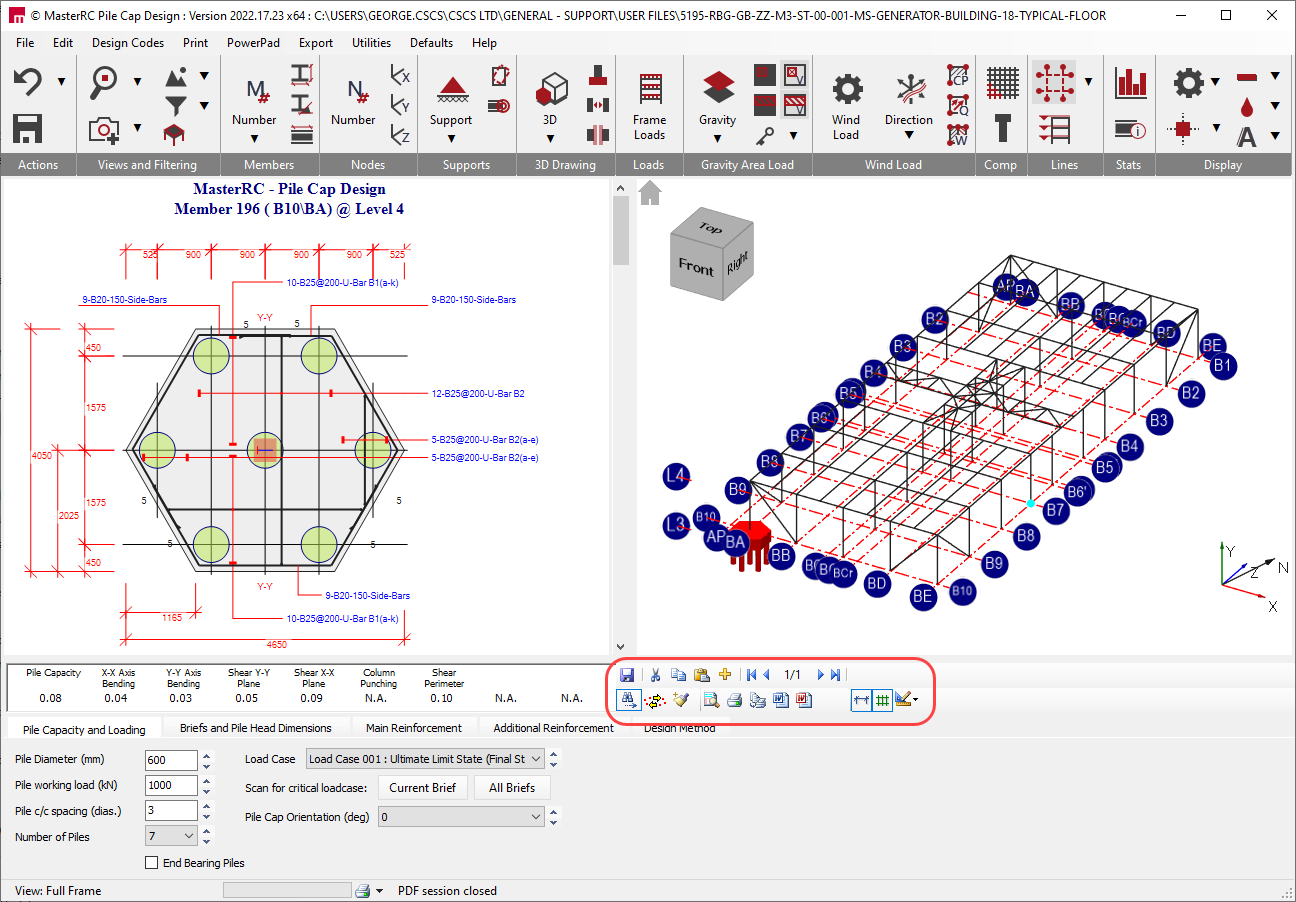

Due to the presence of the MasterFrame icons at the top of the screen, the pile cap icons are located under the frame graphics display area.

Each icon has a tooltip which gives a brief explanation of the function of the icon.
