Drawings Options

The drawing options area gives functionality to show graphical displays for the reinforcement provided and the design forces with any defined wall pier or coupler beams.

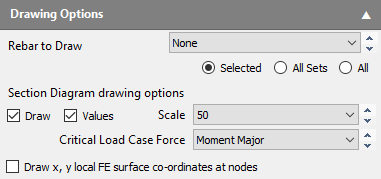

The layout of the Drawings Options is shown below:

The available options are:

Rebar to draw – select which reinforcement or utilization ratio to show. Results are shown colour coded with a key given in the graphical window

Selected – show results for the currently selected zone or for all zones or sets

The section Diagram options given option to control the display of the section diagrams for the currently selected zone as well as selecting the force type to display.

The Draw x,y local FE surface co-ordinates at nodes option allows the co-ordinates of the current FE surface to be toggled on or off.
