Output

The Output area provide options to print out the design report and to produce reinforcement drawings indicating the design reinforcement in colour coded regions to allow for the production of reinforcement detailing drawings.

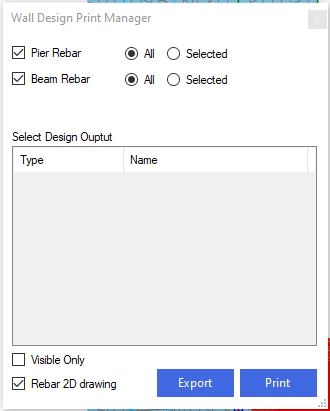

To print or export the design results, select the  icon. This will give the following popup window:

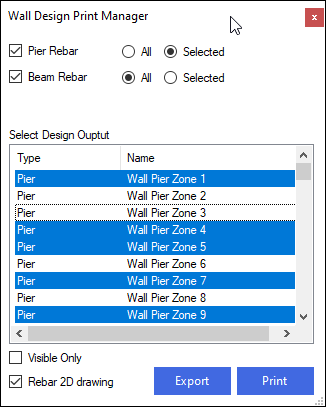

To select specific wall pier and/or coupler beams, click on the Selected radio button, which will then give a list of all wall zones and/or coupler beams. Using Ctrl and the left mouse button, the required zones can be selected as indicated below:

Once the required selection is made, to print to a printer, click on the  icon, while to export the design calculations to Word, select the  icon.

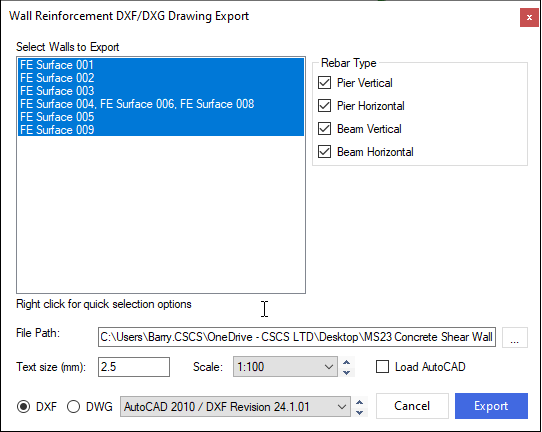

To produce a rebar drawing select the  icon. This will give the following popup window

The wall reinforcement to be export can be selected using Ctrl and the left mouse button. The reinforcement to export is selected in the Rebar Type area.

Once the required export type and scale, along with file location are set, click on the  icon.

Note: the rebar export denotes areas with the required design reinforcement shown in shading. This is not a rebar detailing output and does not take account of laps and/or reinforcement detailing rules.
