The Gravity Area Loading toolbar

If gravity area loading has been applied to the frame (part of the Pro features), then these areas of loading can be displayed graphically using the Gravity icon with both the Colour by Intensity and Show Key applied so that the loaded areas are coloured and a description of the load intensity represented by each colour is displayed in the bottom left of the screen.

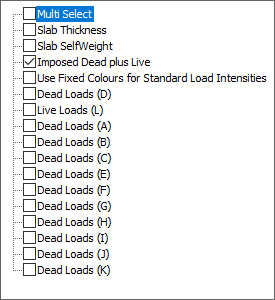

By clicking on the down arrow beside the Show Key option, you will gain access to a list of items that can be displayed in the key table. Tick which item you wish to display. If you need to display more than one item at the same time, tick the Multi Select option first and then the several items to be included in the key. This is very useful for validating the area loading that has been applied to the model.

Patch and Line loads that have been added to the area loading can also be displayed along with their values.
