Basic Model Views

In the main graphics viewing pane, Masterframe offers two viewing modes, orthogonal and walk-through. The orthogonal view is the default view within Masterframe. In the orthogonal viewing mode, the frame view is set such that the global x-, y- and z-axes are arranged at right angles, while the walk-through mode uses a vanishing point perspective view.

                                                  Orthogonal View of model.

                                                  Walk-through viewing mode

The viewing model can be changed by using the right hand mouse button. Position the mouse pointer anywhere on the graphics window and press the right hand mouse button. If in the orthogonal mode, the Orthogonal View is marked with a tick.

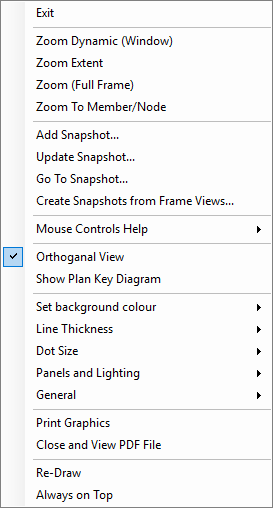

          Orthogonal View enabled.

To switch to the Walk-through viewing mode, click on the Orthogonal View item in the menu. This switches the view to the walk-through mode, and a walk-though option now appears in the right-hand mouse menu.

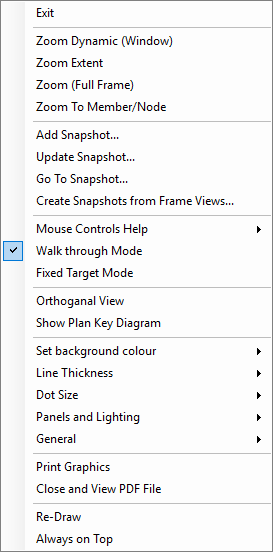

          Walk Through mode enabled.
