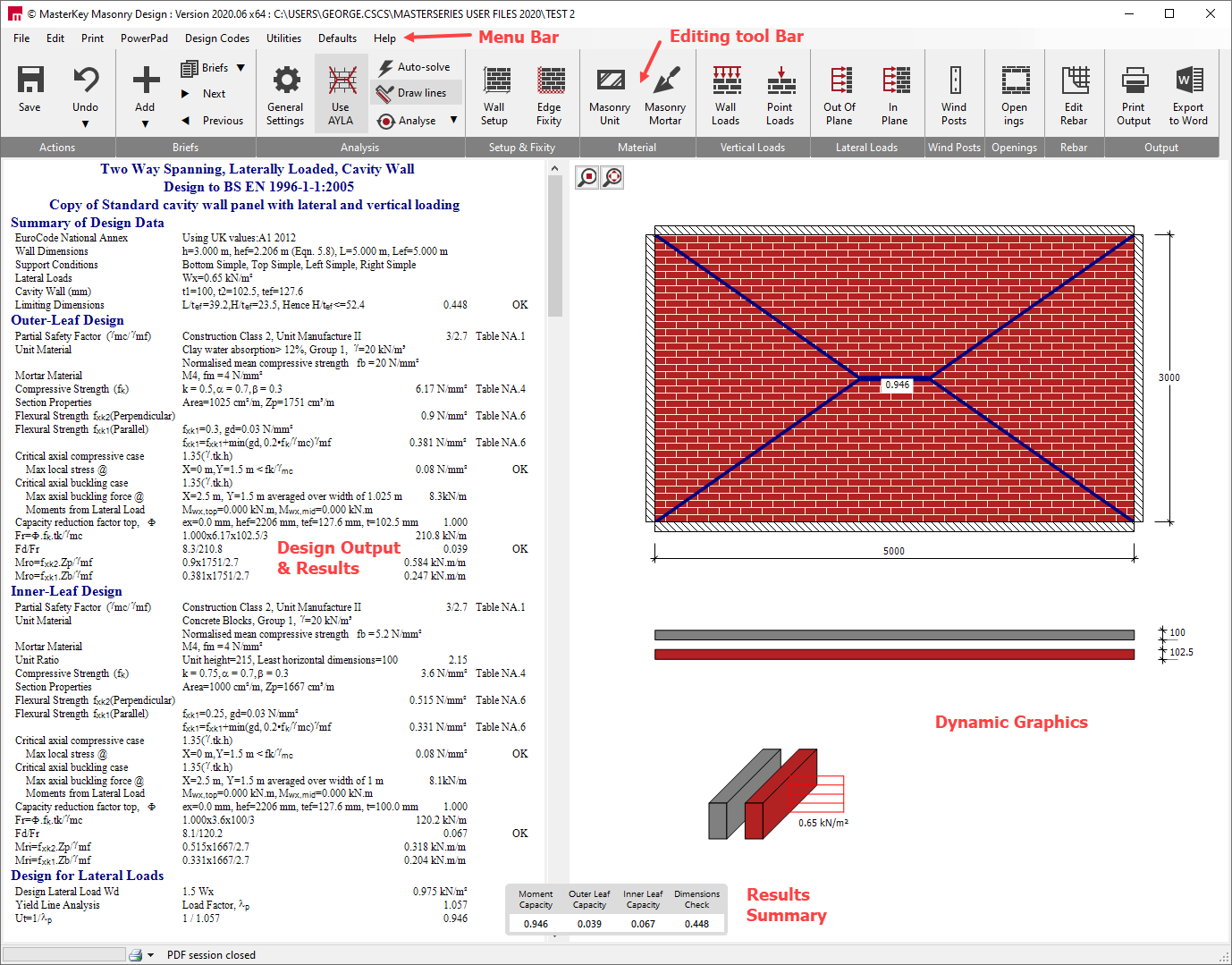

MasterKey Masonry Design is an interactive program for the design of reinforced and unreinforced masonry columns, stiffened and unstiffened, single and cavity wall panels with or without openings to BS 5628 and EC6 and IS 325.
Note:- underlined design features below are only available in the full version, all other features are available in both full and PowerPad versions.
|
•Reinforced and unreinforced masonry walls and columns •Stiffened (piers) and unstiffened single-leaf and cavity walls •Support conditions for free, simple, continuous and partially fixed •Advanced Yield Line and Vertical Load analysis •Line load at free edge •Load bearing and infill wall panels (wind) •Materials and workmanship can be selected from the built-in library •Uniform, triangular and line lateral loads •Concentrated vertical point loads on top of wall •Horizontal shear force and horizontal wind moment in the plane of the wall |
•Internal load factoring with an option for non-critical panels •Option to observe or disregard the H/L limits •Option to share the horizontal loads between the inner and outer lead •Option to place pier in tension or compression •Up to 10 openings in one panel •Analyse with wind posts in panels, in inner or outer leaf or cavity •Various options to customise the viewing and printing of results •Input test result compressive and flexural strengths •Design to British Standard or EuroCode |
|
•Easy to use, very fast with powerful editing facilities •Toolbar for quick access to program options •Built-in library of material properties and strengths •Fast navigation facilities to display any part of the output •Built-in on-screen training |
•Full summary of design data is displayed with clear warnings of non-compliance •Automatic transfer of data from one design to another for rapid analysis and design of similar panels •Clear and concise output with selective printing |
