Introduction

The top toolbar in MasterFrame gives you access to numerous tools that you will find beneficial when examining and navigating through your model. This toolbar is dynamic in that it compresses and expands depending on the size of your computer screen. As it compresses the icons become smaller and their individual descriptions are no longer visible. A minimum screen width of 960 pixels is required to display the compressed toolbar, although a preferred width of 1280 is recommended to show the intermediate toolbar and 1768 for the full toolbar. The tools are grouped into appropriate sub-sections with each sub-section including a set of related options.

We will review these various sections of the toolbar and see how they can benefit our manipulation of the frame and the data applied to it.

The compressed toolbar shows most of icons but without their basic descriptions;

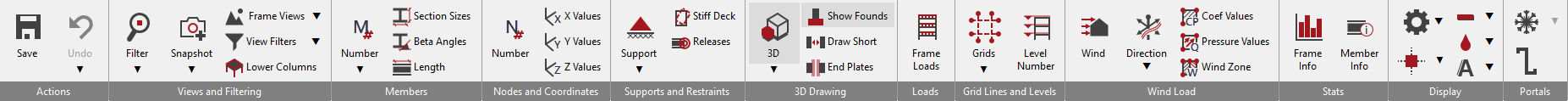

The full toolbar shows larger icons with their descriptions and, if required, the option to click on an arrow to expand the options available.
