Nodal Displacements

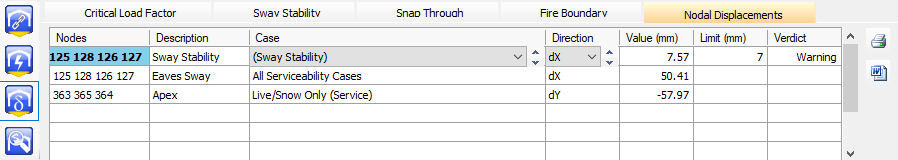

In MasterPort, the nodal displacements check is located along with the four general checks as outlined above. Displacement checks are automatically generated for sway stability, and horizontal eaves displacement on the eaves nodes, as well as vertical displacements on the apex nodes, as shown below.

Additional check nodes can be added along with the relevant load cases, displacement directions and limits if applicable. Up to 9 lines of checks can be included.

As with the general checks, printing and exporting is controlled from the nodal displacements tab and not the general print manager.

  Print/export the nodal displacement checks as they appear in the grid.
