Design Menus

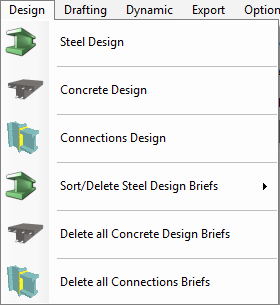

Under the Design menu there are links to the steel, concrete and connections design for the model.

MasterPort steel design - for further details on the steel design menu for a portal frame see the Steel Design main menu section.

You can also link your portal frame model to the concrete design wherein the concrete pads to the columns can be designed and checked. For further information on the concrete design see the manual 11 MasterKey Concrete Design - Pad Foundations.

You can also link your model to the connections design wherein the moment and simple connections can be designed and checked, for example, eaves connections, apex and baseplates. For further details on the connection design see the manual 10 MasterKey Connections.
