The post analysis menu gives access to various additional menus, including viewing and printing the datafile, examining the analysis output, selecting the type of design to be carried out, and exporting facilities.
.png)
The File menu
|
|
|
|
Create a new MasterPort file |
|
|
Open an existing MasterPort file |
|
|
Open a recent existing MasterPort file |
|
|
Save the existing MasterPort file |
|
|
Save the existing MasterPort file as a copy with a new filename |
|
|
Save the current frame to the MasterSeries Library |
|
|
Saves the current loadcases as the standard default cases |
|
|
Saves the frame in MasterFrame format - see explanation below |
|
|
Exit MasterPort completely |
|
|
Exit MasterSeries completely |
When a frame is saved in MasterFrame format it takes the same filename as the current file. This new file can then be found as a MasterFrame file in the same directory that the MasterPort file was saved in. Some users like to save the frame in MasterFrame format so that they can use some of the facilities that are found in MasterFrame, but don't exist in MasterPort.
There are a couple of differences that occur when the frame is saved in MasterFrame. These include the 0/10/20 partial fixity option which is automatically applied in MasterPort. This option is not applied automatically in MasterFrame. Instead it is applied only as the 20 percent fixity. Therefore the 0 and 10 percent fixities need to be applied manually - see the MasterFrame manual for details on how to accomplish this.
The other main difference is that the design briefs are applied to individual members rather than the member groups as in MasterPort. Therefore additional design briefs need to be added for all the members in the MasterFrame version of the model.
The Data menu
|
|
|
|
View the data file for the frame, including node coords, loads, etc |
|
|
Print the data file, also option to export to Word |
|
|
Print the frame graphics as currently seen on screen |
|
|
Export the current frame graphics to Word |
Analyse - see the analyse item in the editor menu above.
The Output menu
|
|
|
|
View nodal deflections, member forces and support reaction |
|
|
Print selected deflections, forces and reactions in tabular format |
|
|
View, print, export member stresses |
|
|
Show internal members forces along length of a member |
|
|
View, print, export to Word frame deflections, forces and bending moments in graphical format |
The Design menu
|
|
|
|
Go into linked Steel Design of the frame |
|
|
Go into linked Concrete Design for the column bases |
|
|
Go into linked Connections Design of the joints |
|
|
Sort and/or delete the current steel design briefs |
|
|
Delete all the current concrete design briefs |
|
|
Delete all the current connection briefs |
Drafting - use MasterCAD for Portal Frames to modify the graphical appearance of the portal frame and print/export GAs and sections to other drawing formats, eg, DXF. For further details see the drafting section below.
Dynamic - see the dynamic item in the editor menu above.
The Export menu
.png)

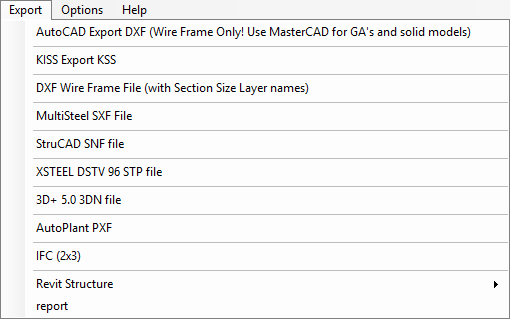

Export the portal frame in various formats capable of being interpreted by other specific software packages. The most common of these are the DXF, IFC and Revit Structure formats. See Exporting the Structure for further details on how to accomplish the exporting.
For details on exporting through Revit see chapter 15 on 'BIM' in the MasterFrame manual.
The Options menu
|
|
|
|

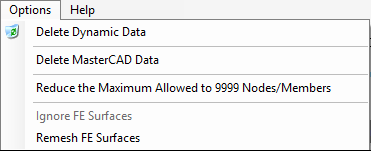

Delete any dynamic data previously applied |
|
|
Delete any MasterCAD data previously applied |
|
|
Speeds up analysis slightly |
|
|
Ignore any FE surfaces in the model |
|
|
Remesh any FE surfaces in the model |
Help - see the help item in the editor menu above.
