Toolbars





The top toolbar is split into 3 areas as follows:-





1. File management









2. Wall definition options









3. Output printing/exporting

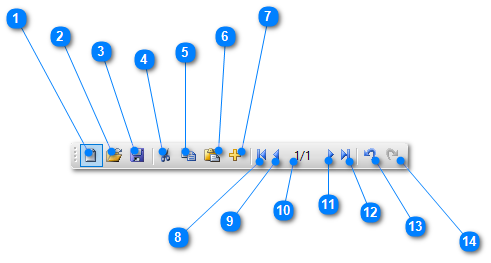

Toolbar - File Management









Create new file



Open existing file



Save file



Cut current brief

Copy current brief



Paste brief

Add new brief



Move to first brief

Move to previous brief



Number of briefs



Move to next brief



Move to last brief

Undo last action



Redo last action

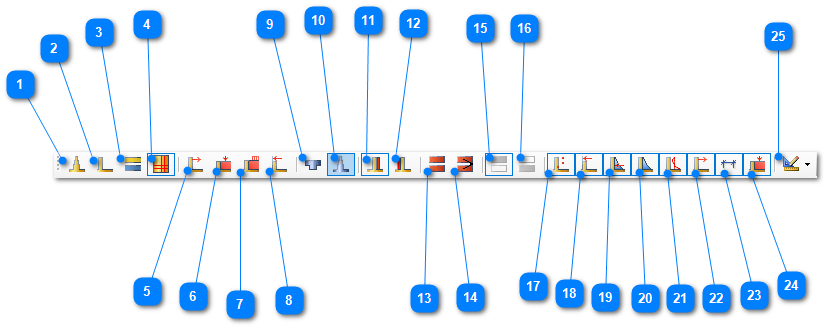

Toolbar - Wall Definition Options





















Stepped Wall

Masonry/Concrete Wall

Cladding

Reinforcement





















Ties

Line Loads

Partial Loads

Horizontal Surge force



















Stiffened/Unstiffened Wall (Piers)

Stepped Piers

Pier in Tension (Inner Face)

Pier in Compression (Outer Face)



















Split graphics into two drawings

Auto split information between 2 drawings

Show drawing 1

Show drawing 2



















Show weights and centres

Show horizontal surge

Show active pressure

Show pressure diagram



















Show bending moment

Show ties

Show dimensions

Show line loads

















Customise fonts and colours



















By selecting the Customise Fonts and Colours icon (see 25 above), you can change some of the graphics basic colours, set the font size and type and alter the magnification of the on screen graphics.












Toolbar - Output Printing/Exporting











Project title and job references

Print current brief

Print All briefs

Export current brief to Word

Export All briefs to Word
